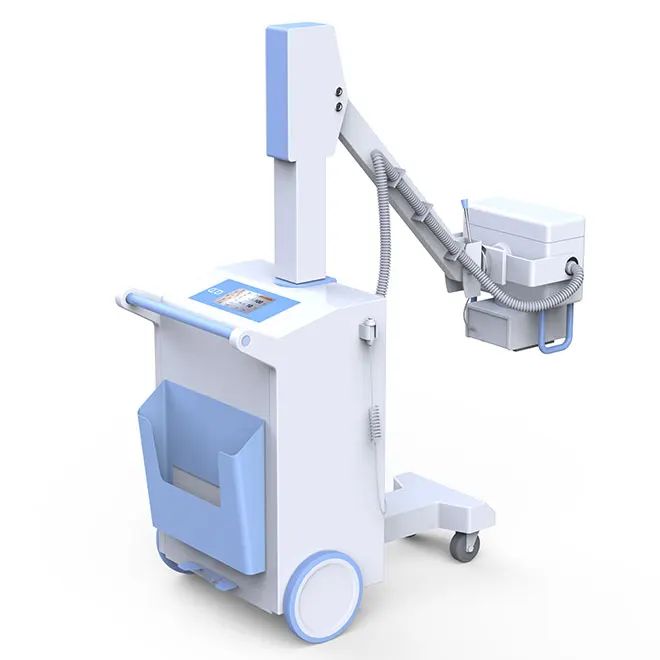

AMPLX102 Mobile X-Ray

• Usage:
The machine is mobile X-ray radiography medical diagnostic equipment. It can be used in wards, operation rooms and emergency rooms, etc., and it can satisfy the radiography requirements of the human body such as the head, chest, and limbs.

Specifications
Power Output: 3KW
X-Ray Tube: Fixed anode
Commute Method: Full wave commutation
Tube Voltage: 40~90KV
Tube Current: 50~90KV 15mA | 50~90KV 30mA | 40~80KV 50mA
Exposure Time: 50~90KV 15mA 0.1~6.3s | 50~90KV 30mA 0.1~6.3s | 40~80KV 50mA 0.1~1.5s
Power Supply: 110V±10% 60Hz inner-resistance≤1Ω4KW or 220V±10% 50Hz inner-resistance≤1Ω 4KW
Operation Method: Wire /Wireless control
